Vehicle support first
Confirm native V2L support in the vehicle documentation before connecting any load.
TYPE 2 VEHICLE-TO-LOAD
Type 2 V2L Discharge Cable
A compatibility-first product family for vehicles that provide native V2L output through their Type 2 port.

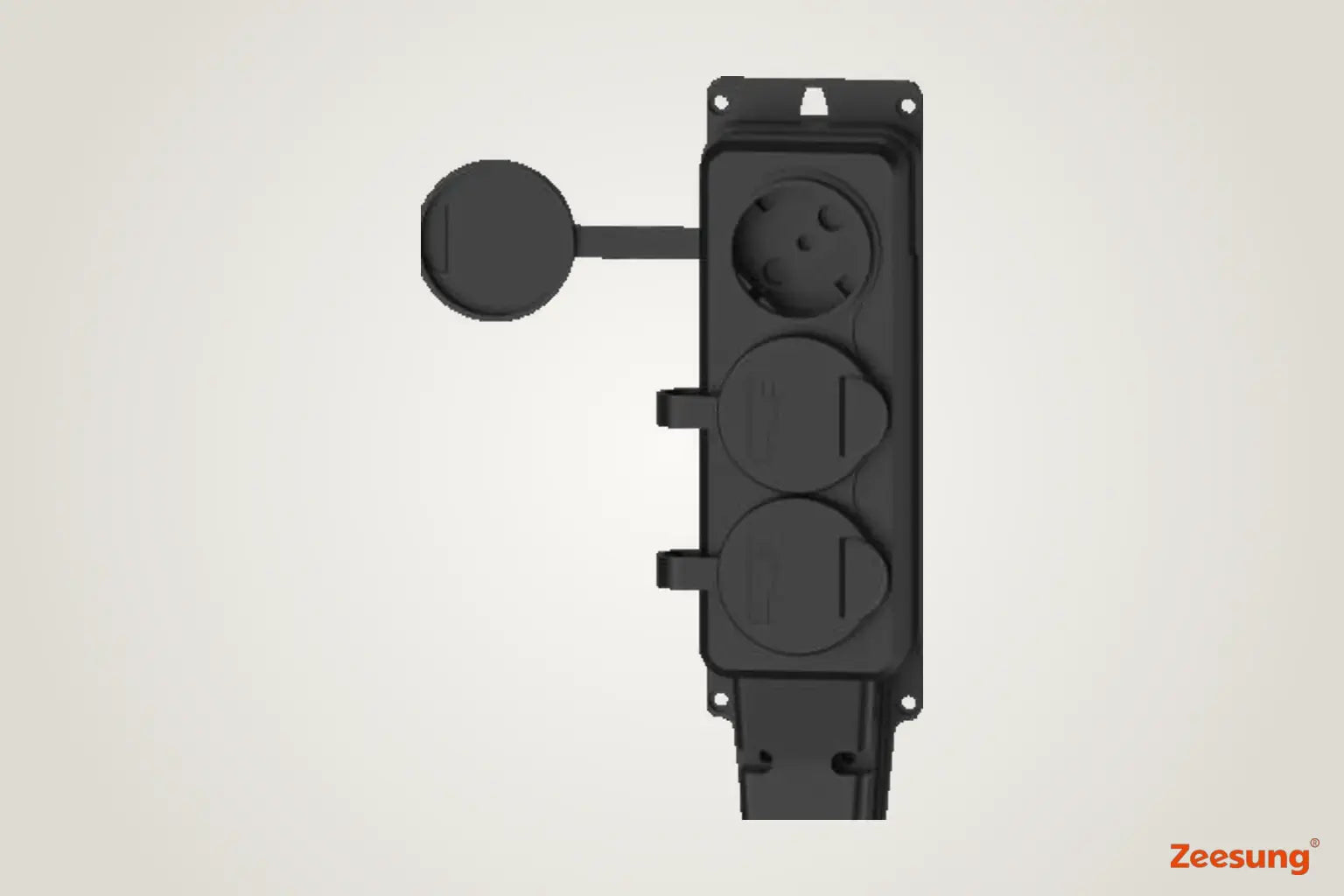

- Outlets
- 3 × Type F
- Combined output
- 3500 W maximum
- Model
- ZC-20VSPE1-V2L
- Cable lengths
- 5 / 7.5 / 10 m
Compatibility is decisive. A Type 2 inlet alone does not confirm V2L support. The vehicle must provide native V2L output and its output and protection behaviour govern the connected load.
Shared output
The 3500 W maximum is combined across all three outlets, not available independently at each outlet.
Plan the cable route
Choose 5 m, 7.5 m or 10 m after measuring a route that keeps the outlet module and cables protected.
TECHNICAL DETAILS
A clear boundary for vehicle-to-load use.
- Model ZC-20VSPE1-V2L
- Type 2 vehicle connector to three Schuko Type F outlets
- 20 A rated current; 250 V AC product path
- 3500 W maximum combined output
- 5 m, 7.5 m and 10 m cable routes
- Vehicle V2L support and connected load determine output and protection behaviour
